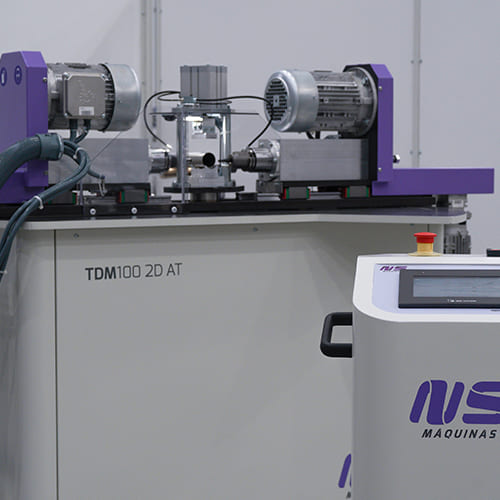

NS MAQUINAS TDM100 2D AT INCLINE TUBE DRILLING MACHINE
For Product Video Click Here →
Automatic tube drilling, flowdrilling and tapping machine.
The TDM100 2D AT is an automatic tube drilling machine that provides precise and versatile drilling capabilities on round tubes and flat bars. With the ability to perform both perpendicular and angular drilling, this machine offers unparalleled flexibility for a wide range of applications.
Equipped with advanced double heads that come with programmable settings, the TDM100 2D AT can perform not only tube drilling, but also flow drilling and tapping, all without requiring any operator intervention. This ensures that the drilling process is not only highly efficient but also highly accurate.
The TDM100 2D AT also boasts a fully automated tube feeding, rotation, and clamping system. This feature streamlines the entire drilling process, significantly reducing the time and effort required to set up and operate the machine.
|TDM100 2D AT|
|Working capacity (Ø mm)||Ø114
|Max. Length (mm)||3000|
|Max. drill (mm)||Ø50
M12 (flow drill)
|Drilling speed (mm/s)||1.2-20|
|Main motor (kW)||(2x) 2.2|
|Total power (kW)||5.18|
