NS MAQUINAS MLW200 TC ROUND TUBE FINISHING MACHINE
Max Ø 205mm
Straight and conic tube wet finishing up to Ø205mm with maximum flexibility and consistency.

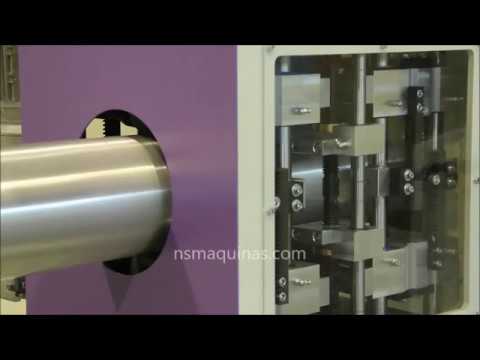

The MLW200’s TC version is a round tube wet-operation finishing machine capable of automatically polishing cylindrical and conical tubes from Ø25mm up to Ø205mm.
The auto feeding system transports straight tubes safely and automatically through the finishing station, enabling a consistent and highly productive finishing quality.
The wet system allows for faster cooling of the tube as well as the possibility of working different types of metal simultaneously.
|Working capacity (Ø mm)||25-205|
|Abrasive belt dimensions (mm)||(2x) 70x1240|
|Abrasive belt speed (m/s)||10-25|
|Feeding speed (m/m)||1-4|
|Abrasive belts motor (kW)||11|
|Wheel motor (kW)||5.5|
|Feeding motor (kW)||(2x) 0.25 + (2x) 0.12|
|Total power (kW)||18|
