Edge rounding
up to 1600mm

Ideal for edge rounding of light burrs with extended working capacity of 1600mm width.

DM1600 C performs edge rounding and removes sharp edges on both external and internal contours of stainless steel, steel or aluminium parts either cut in laser, shear or punching machine.

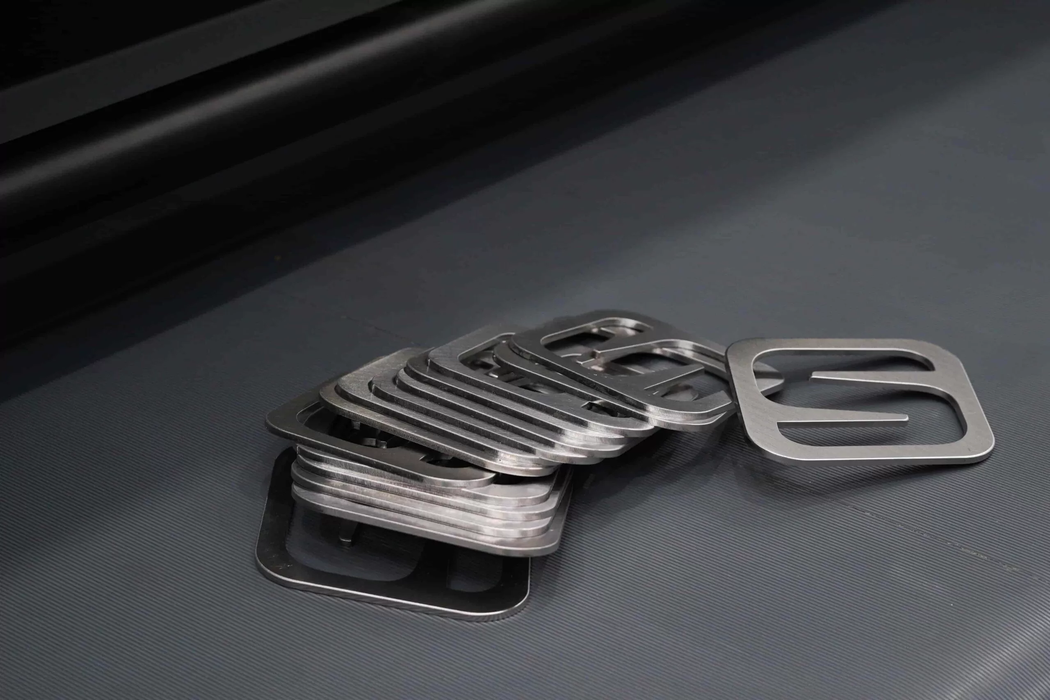

This machine works parts of different dimensions including products as small as 50x50mm and has an increased working capacity of 1600mm.

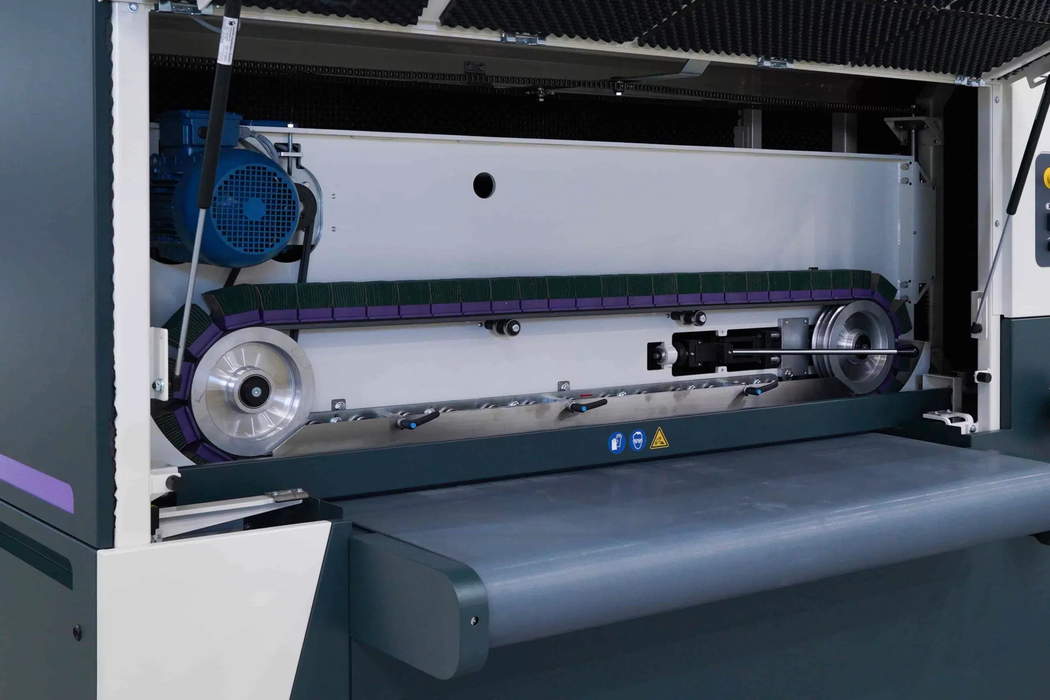

DM1600 C has a station with double cross belts for edge rounding, leaving clean, soft and burr-free edges on the complete parts.

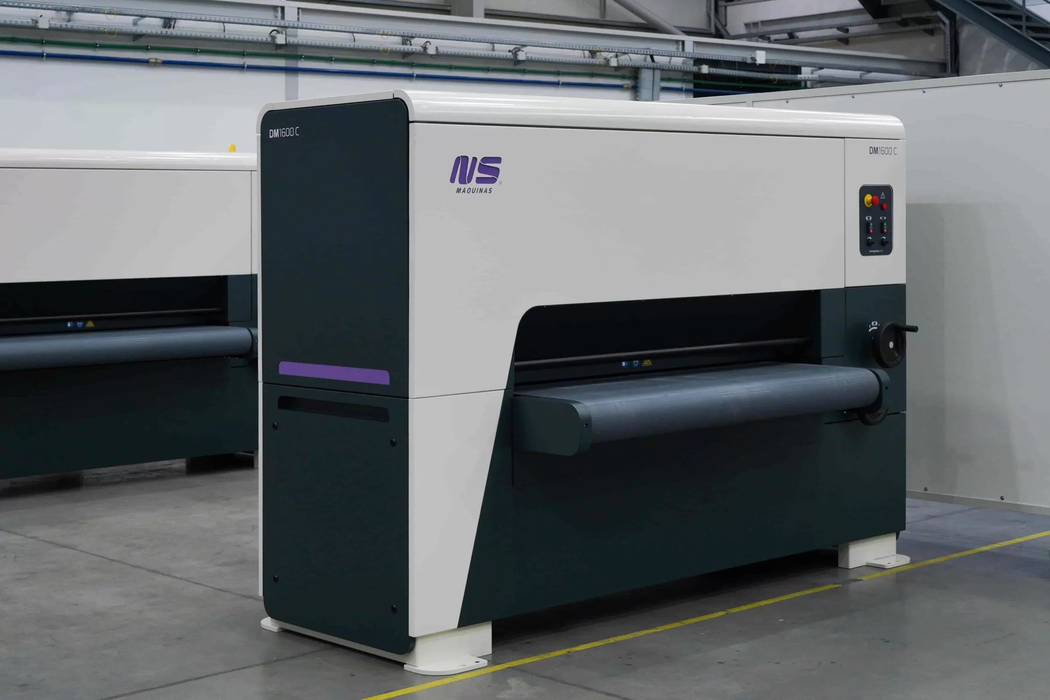

DM1600 C
Working capacity (mm) 1600x50
No. Cross belt stations 1
Cross belt speed (m/s) 2-8
Feeding speed (m/m) 0.6-3.2
Cross Belt Motor (kW) (2x) 4
Feeding motor (kW) 0.12
Total power (kW) 8
Consumption (A) 13
Dust extraction connection per head (Ø mm) 150
Dimensions (mm) 2730x1740x1940
Weight (kg) 1790
