Max width 330mm

Wet finishing

1-4 stations

Large capacity for rectangular tubes and bars wet finishing up to 330mm width.

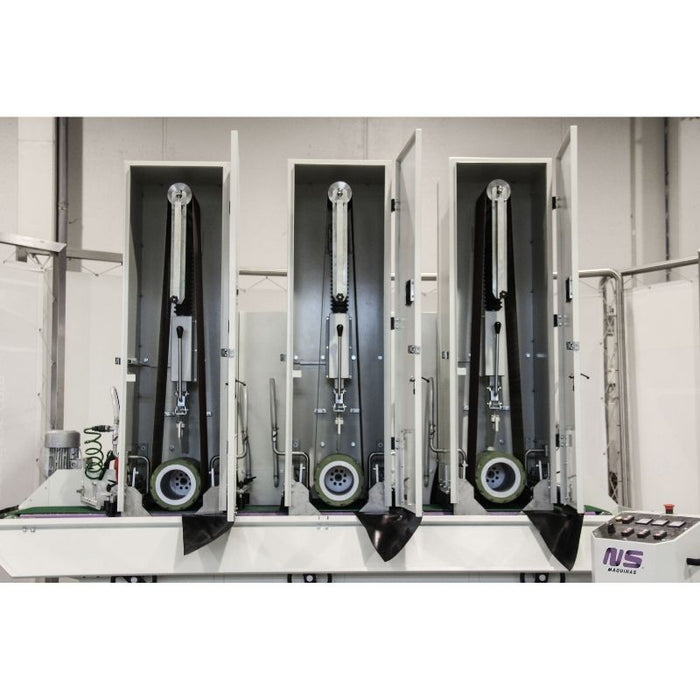

FGW330 flat surfaces and square tube polishing machines are equipments for surface finishing with water cooling made to polish bars, rectangular tubing and flat surfaces of various shapes.

These machines enable the work up to 330mm width with multiple combinations of belt heads and brushes.

The wet cooling system reduces the heat on the surface of the material and removes the dust from the polishing area. The dust is filtered from the water which operates in closed circuit.

FGW330 Z has one abrasive belt unit, while FGW330 2Z have 2 abrasive belt heads. A triple abrasive belt machine, FGW330 3Z is also available.

Other options such as abrasive belt plus brush units or higher number of abrasive stations can also be supplied.


FGW330 Z FGW330 2Z FGW330 3Z
Working capacity (Ø mm) 330-200 330-200 330-200
No. belt stations (Z) 1 2 3
No. brush stations (K) 0-2 0-2 0-2
Abrasive belt dimensions (mm) 330x3330 330x3330 330x3330
Abrasive brush dimensions (mm) 330xØ200 330xØ200 330xØ200
Abrasive belt speed (m/s) 20 20 20
Abrasive brush speed (m/s) 15 15 15
Feeding speed (m/m) 6+12 6+12 6+12
Abrasive belt motor per head (kW) (x1) 7.5 (x2) 7.5 (x3) 7.5
Abrasive brush motor (kW) 5.5 5.5 5.5
Feeding motor (kW) 0.75 0.75 0.75
Total power (kW) 8.65 16.5 23.65
Consumption (A) 16 30 46
Dimensions (mm) 1350x1420x2600 2100x1450x2600 2600x1450x2600
Weight (kg) 970 1690 2500
