NS MAQUINAS ML50 ROUND TUBE POLISHING MACHINE

Original price €0,00 - Original price €0,00
Original price
€0,00
€0,00 - €0,00
Current price €0,00

Max 50mm

Curved tubes

1 station

Ideal for polishing curved round tubes with a tight radius and diameters up to 50mm.

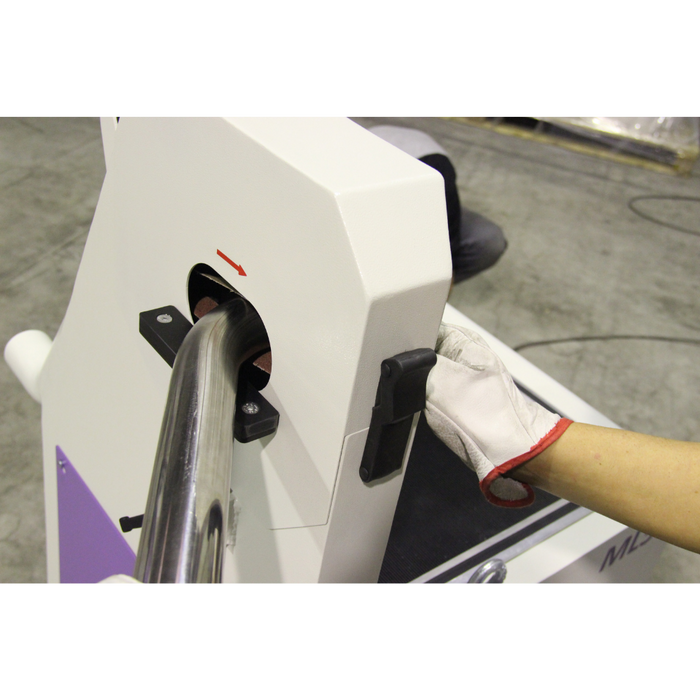

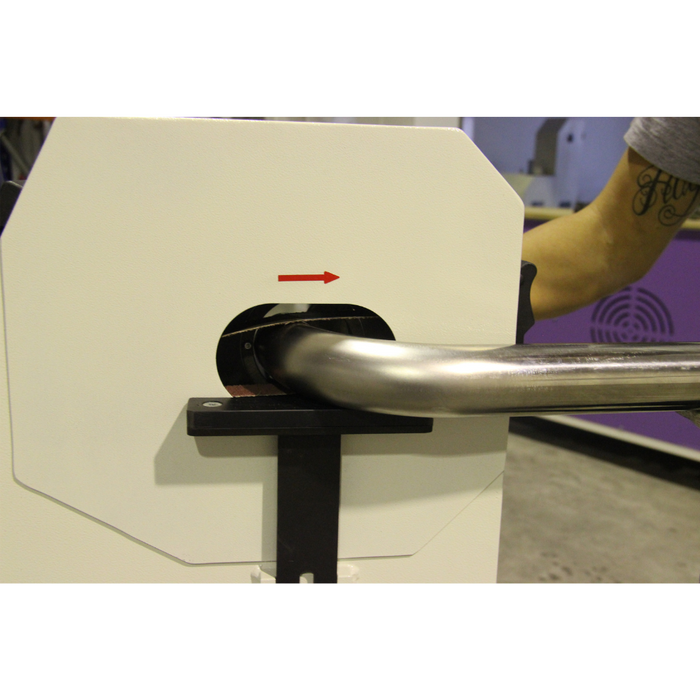

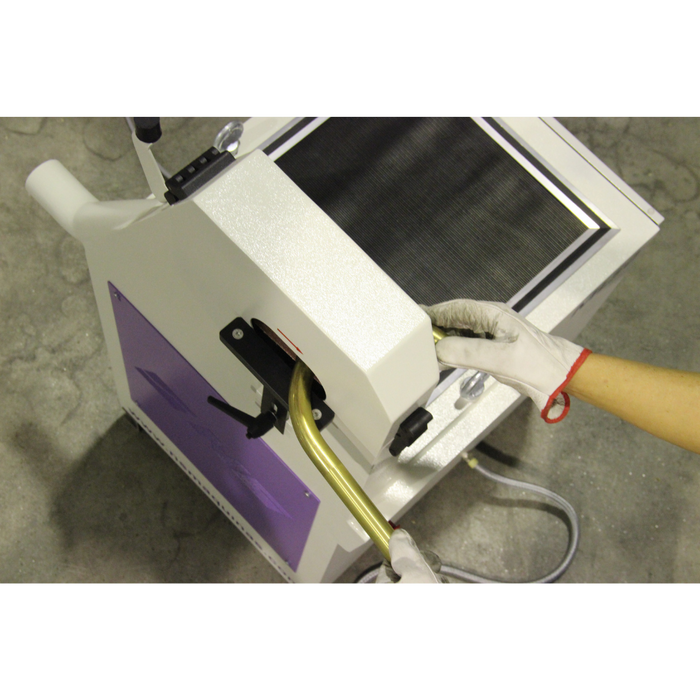

The ML50 round tube finishing machine is the ideal equipment to polish small diameter round tubes with a tight bend radius.

Polishing water taps and faucets, finishing handles, or polishing in curved tubular products are easily achieved with the ML50.

The ML planetary system allows the work to be done without rotating the tube, delivering the best results on both bent and curved tubes.

ML50
Working capacity (Ø mm) 5 - 50
No. Stations 1
Abrasive belt dimensions (mm) (2x) 25x500
Abrasive belt speed (m/s) 10-25
Abrasive belts motor (kW) 2.2
Wheel motor (kW) 1.5
Total power (kW) 4
Consumption (A) 12
Dust extraction connection (Ømm) 60
Dimensions (mm) 650x740x1220
Weight (kg) 170
Minimum Bend Chart See chart
