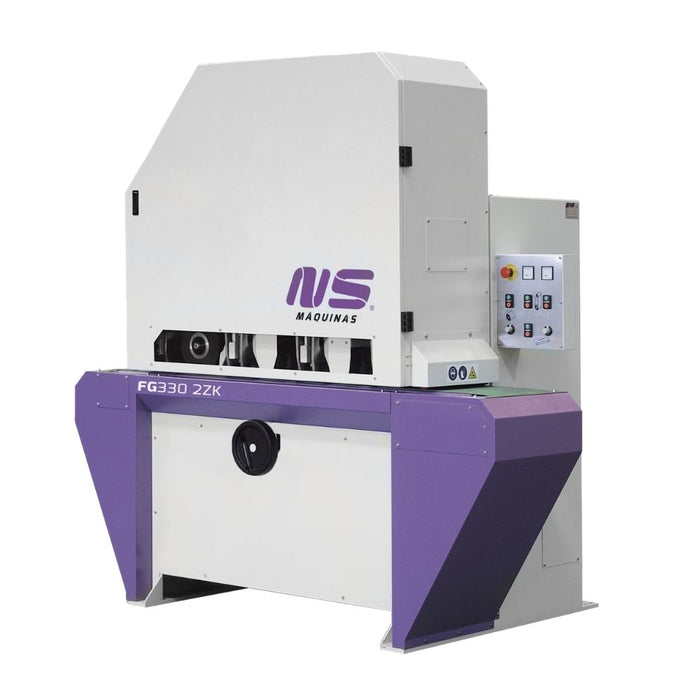

NS MAQUINAS FG330 FLAT FINISHING MACHINE

Sold out
Original price €0,00 - Original price €0,00
Original price
€0,00
€0,00 - €0,00
Current price €0,00

Max width 330mm
Dry finishing
1-3 stations

Large capacity for rectangular tubes and bars finishing up to 330mm width.

FG330 flat bar and square tube polishing machines are equipments with a solid construction and ready for intensive work in bars or rectangular tubing.

These machines enable the work up to 330mm width with multiple combinations of belt heads and brushes.

FG330 Z has one abrasive belt unit, while FG330 ZK combines the abrasive belt head with an abrasive brush. A double abrasive belt machine, FG330 2Z, and double abrasive belt plus brush, FG330 2ZK are also available.

Other options such as 3 abrasive belts or modification of order of belts and brushes can also be supplied.

FG330 ZK FG330 2Z FG330 2ZK
Working capacity (Ø mm) 330x200 330x200 330x200
No. belt stations (Z) 1 2 2
No. brush stations (K) 1 - 1
Abrasive belt dimensions (mm) 330x2200 330x2200 330x2200
Abrasive brush dimensions (mm) 330xØ200 - 330xØ200
Abrasive belt speed (m/s) 20 20 20
Abrasive brush speed (m/s) 15 - 15
Feeding speed (m/m) 6+12 6+12 6+12
Abrasive belt motor per head (kW) (x1) 7.5 (x2) 7.5 (x2) 7.5
Abrasive brush motor per head (kW) (x1) 5.5 - (x1) 5.5
Feeding motor (kW) 0.55 0.55 0.55
Total power (kW) 13.55 15.55 21.25
Consumption (A) 30 32 40
Dust extraction connection per head (Ømm) (2x) 101,6 ext (2x) 101,6 ext (3x) 101,6 ext
Dimensions (mm) 1900x1600x2010 1900x1600x2010 2050x1550x2050
Weight (kg) 1350 1450 1520
