NS MAQUINAS FG170 FLAT FINISHING MACHINE

Sold out
Original price £0.00 - Original price £0.00
Original price
£0.00
£0.00 - £0.00
Current price £0.00

Max width 170mm
Dry finishing
1-3 stations

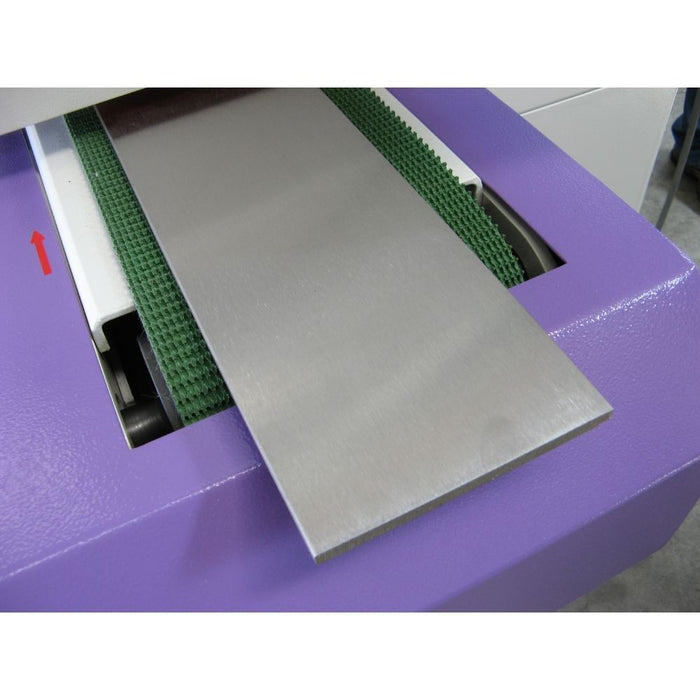

Professional finishing of rectangular tubes and bars up to 170mm width.

FG170 flat bar and square tube polishing machines are equipments with a solid construction and ready for intensive work in bars or rectangular tubing.

These machines enable the work up to 170mm width with multiple combinations of belt heads and brushes.

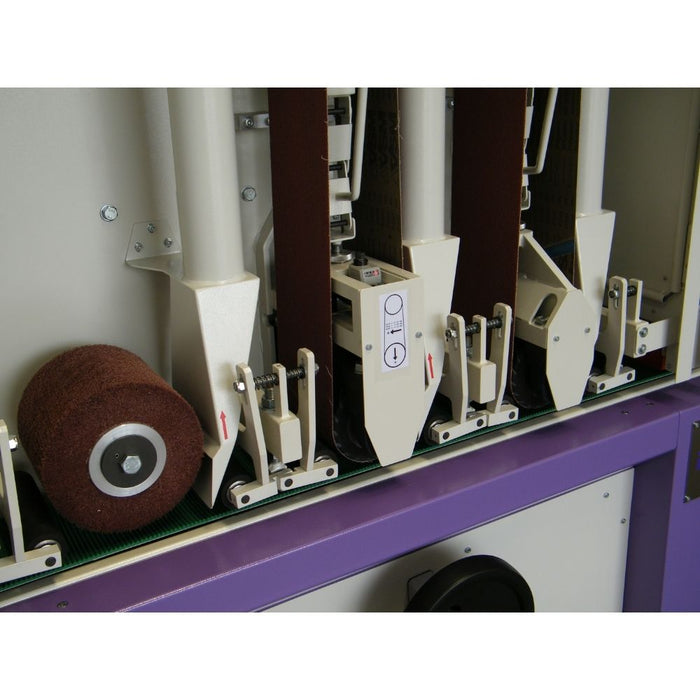

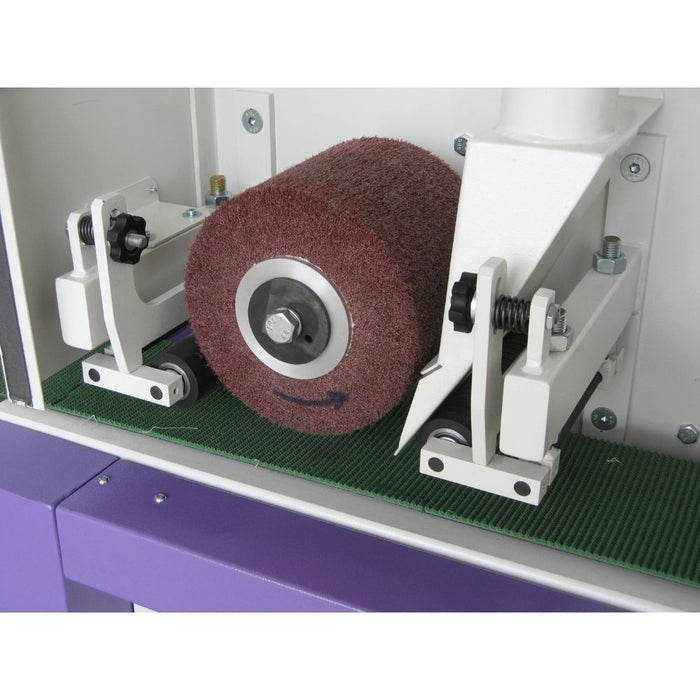

FG170 Z has one abrasive belt unit, while FG170 ZK combines the abrasive belt head with an abrasive brush. A double abrasive belt machine, FG170 2Z, and double abrasive belt plus brush, FG170 2ZK are also available.

Other options such as 3 abrasive belts or modification of order of belts and brushes can also be supplied.

FG170 ZK FG170 2Z FG170 2ZK
Working capacity (Ø mm) 170x200 170x200 170x200
No. belt stations (Z) 1 2 2
No. brush stations (K) 1 - 1
Abrasive belt dimensions (mm) 170x2000 170x2000 170x2000
Abrasive brush dimensions (mm) 170xØ200 - 170xØ200
Abrasive belt speed (m/s) 20 20 20
Abrasive brush speed (m/s) 15 - 15
Feeding speed (m/m) 6+12 6+12 6+12
Abrasive belts motor per head (kW) (x1) 4 (x1) 4 (x2) 4
Abrasive brush motor per head (kW) (x1) 3 - (x1) 3
Feeding motor (kW) 0.45 0.45 0.45
Total power (kW) 7.45 8.45 11.45
Consumption (A) 18 20 25
Dust extraction connection per head (Ømm) (x2) 101.6 (x2) 101.6 (x3) 101.6
Dimensions (mm) 1700x1000x2000 1700x1000x2000 1910x1000x2000
Weight (kg) 800 900 1050
